3. MX-DCM功能
本章介绍MX-DCM的主要功能，以及 mx-dcmi 命令的使用示例。
备注
本文档中，输出结果均以曦云C500为示例。
3.1. 设备查询
用户可以使用设备查询功能查看指定主机上的可用设备。
3.1.1. 使用帮助
mx-dcmi discovery -h
执行命令后，显示如下：
USAGE:
mx-dcmi discovery [-hlv] [--gpuid <gpuid>] [--host <IP:PORT>]
Where:
-l, --list <FILE>
List all GPUs discovered on the host.
--host <IP:PORT>
The target host to connect.
Either of:
--gpu-id <gpu-id>
Query target gpu detail info
--group-id <[0, 63]>
Query gpus' detail info of a gpu group
--, --ignore_rest
Ignores the rest of the labeled arguments following this flag.
-v, --version
Displays version information and exits.
-h, --help
Displays usage information and exits.
MetaX Data Center Management Interface
3.1.2. 查看设备列表
mx-dcmi命令：
mx-dcmi discovery --host [IP]:[PORT] -l
操作成功，显示如下：
============= MetaX Data Center Management Interface Log ============= Timestamp : Wed Mar 6 15:00:00 2024 +----------+--------+----------------------------------------------------------+ | BOARD_ID | GPU ID | Device Information | +----------+--------+----------------------------------------------------------+ | 0 | 0 | Name: MXC500 | | | | PCI Bus ID: 0000:4f:00.0 | | | | Device UUID: GPU-dcf2c6b3-bf23-7535-8406-fa0d793df737 | +----------+-------------------------------------------------------------------+ | 1 | 1 | Name: MXC500 | | | | PCI Bus ID: 0000:50:00.0 | | | | Device UUID: GPU-1323796f-71df-ea8c-ed3d-8389dbd9eef4 | +----------+-------------------------------------------------------------------+
RESTful API：
curl -i -X GET http://[IP]:[PORT]/api/v1/gpus
操作成功，显示如下：
HTTP/1.1 200 0K Content-type: application/json Content-Length: 206 {"gpus":[{"boardid":0,"deviceid":0,"bdfid":"0000:4f:00.0","uuid":"GPU-dcf2c6b3-bf23-7535-8406fa0d793df737","type":"MXC500"},{"boardid":1,"deviceid":1,"bdfid":"0000:50:00.0","uuid":"GPU-1323796f-71df-ea8c-ed3d-8389dbd9eef4","type":"MXC500"}]}
3.1.3. 查看指定设备的属性信息
mx-dcmi命令：
mx-dcmi discovery --host [IP]:[PORT] --gpu-id 0
操作成功，显示如下：
============= MetaX Data Center Management Interface Log ============= Timestamp : Wed Mar 6 15:00:00 2024 +---------------------------+------------------------------------------+ | BOARD ID: 0 | Power Limit (W): 350 | +---------------------------+------------------------------------------+ | GPU ID: 0 | Device Information | +---------------------------+------------------------------------------+ | Device Name | MXC500 | | PCI Bus ID | 0000:4f:00.0 | | Device UUID | GPU-dcf2c6b3-bf23-7535-8406-fa0d793df737 | | Board SN | PBR23090062067 | | KMD Version | 2.1.0 | | VBIOS | 0.18.0.0 | +---------------------------+------------------------------------------+ | Shut down Temperature(C) | 108.00 | | Slow down Temperature(C) | 95.00 | +---------------------------+------------------------------------------+
RESTful API：
curl -i -X GET http://[IP]:[PORT]/api/v1/gpus/gpu/0
操作成功，显示如下：
HTTP/1.1 200 0K Content-type: application/json Content-Length: 256 {"gpus":[{"boardid":0,"deviceid":0,"bdfid":"0000:4f:00.0","uuid":"GPU-dcf2c6b3-bf23-7535-8406fa0d793df737","name":"MXC500","boardSN":"PBR23090062067","kmd":"2.1.0","vbios":"0.18.0.0","shutdownTemperature":"108.0","slowdownTemperature":"95.0","powerLimit":"350"}]}
3.2. 设备分组
在MX-DCM里，几乎所有的设备操作都是以设备组为单位。用户可以创建、删除以及更新设备组，并将设备组用于后续的操作。设备组是为了方便用户对多个设备执行相同的操作。不同的组所包含的设备集合可以有重复，因为不同组可以用于不同的管理需求。
Group 0是默认创建的设备组，包含所有的设备，不可更改。
3.2.1. 使用帮助
mx-dcmi group -h
执行命令后，显示如下：
USAGE:
mx-dcmi group [-hlv] [-a <>|-c <>|-d <[0, 63]>|-i|-r <>] [-g <[0, 63]>]
[--host <IP:PORT>]
Where:
-l, --list
List all groups.
--host <IP:PORT>
The target host to connect.
-g <[0, 63]>, --group <[0, 63]>
Group id
Either of:
-a <>, --add <>
Add devices to group
-c <>, --create <>
Create a group on the remote host.
-d <[0, 63]>, --delete <[0, 63]>
Delete a group on the remote host.
-r <>, --remove <>
Remove gpus from group
-i, --inquiry
Inquiry group information
--, --ignore_rest
Ignores the rest of the labeled arguments following this flag.
-v, --version
Displays version information and exits.
-h, --help
Displays usage information and exits.
MetaX Data Center Management Interface
3.2.2. 创建设备组
mx-dcmi命令：
mx-dcmi group --host [IP]:[PORT] -c group1
操作成功，显示如下：
create group group1 with a group ID of 1 successfully
RESTful API：
curl -i -X POST http://[IP]:[PORT]/api/v1/groups/group1
操作成功，显示如下：
HTTP/1.1 200 OK Content-type: application/json Content-Length: 13 {"groupid": 1}
3.2.3. 添加设备到设备组
以下命令把gpu#0和gpu#1添加到设备组#1。
mx-dcmi命令：
mx-dcmi group --host [IP]:[PORT] -a 0,1 -g 1
操作成功，显示如下：
add gpus operation successfully
RESTful API：
curl -i -X PUT http://[IP]:[PORT]/api/v1/groups/1/gpu?gpuid=0,1
操作成功，显示如下：
HTTP/1.1 200 0K Content-Length: 0
3.2.4. 从设备组移除设备
以下命令从设备组#1移除gpu#0。
mx-dcmi命令：
mx-dcmi group --host [IP]:[PORT] -r 0 -g 1
操作成功，显示如下：
remove gpus operation successfully
RESTful API：
curl -i -X DELETE http://[IP]:[PORT]/api/v1/groups/1/gpu?gpuid=0
操作成功，显示如下：
HTTP/1.1 200 0K Content-Length: 0
3.2.5. 查看设备组列表
mx-dcmi命令：
mx-dcmi group --host [IP]:[PORT] -l
操作成功，显示如下：
============= MetaX Data Center Management Interface Log ============= Timestamp : Fri Mar 8 16:52:49 2024 +--------------------------------------------------------------------+ | GROUPS | | 1 groups found | +--------------------------------------------------------------------+ +------------+-------------------------------------------------------+ | Group ID | 0 | | Group Name | DCM_ALL_SUPPORTED_GPUS | | GPU ID(s) | 0, 1, 2, 3, 4, 5, 6, 7 | +------------+-------------------------------------------------------+
RESTful API：
curl -i -X GET http://[IP]:[PORT]/api/v1/groups
操作成功，显示如下：
HTTP/1.1 200 OK Content-type: application/json Content-Length: 86 {"gpugroups":[{"groupid":0,"name":"DCM_ALL_SUPPORTED_GPUS","gpus":[0,1,2,3,4,5,6,7]}]}
3.2.6. 查看设备组详细信息
mx-dcmi命令：
mx-dcmi group --host [IP]:[PORT] -i -g 1
操作成功，显示如下：
============= MetaX Data Center Management Interface Log ============= Timestamp : Fri Mar 8 17:11:38 2024 +------------+-----------------------------------------------------+ | GROUPS | +------------+-----------------------------------------------------+ +------------+-----------------------------------------------------+ | Group ID | 1 | | Group Name | group1 | | GPU ID(s) | 0, 1 | +------------+-----------------------------------------------------+
RESTful API：
curl -i -X GET http://[IP]:[PORT]/api/v1/groups/0
操作成功，显示如下：
HTTP/1.1 200 OK Content-type: application/json Content-Length: 70 {"groupid":0,"name":"DCM_ALL_SUPPORTED_GPUS","gpus":[0,1,2,3,4,5,6,7]}
3.2.7. 删除设备组
mx-dcmi命令：
mx-dcmi group --host [IP]:[PORT] -d 1
操作成功，显示如下：
delete group 1 successfully
RESTful API：
curl -i -X DELETE http://[IP]:[PORT]/api/v1/groups/1
操作成功，显示如下：
HTTP/1.1 200 0K Content-Length: 0
3.3. 指标分组
用户可以管理自定义的指标组，并将指标组用于设备或设备组的状态监控。
FieldGroup 0是默认创建的指标组，不可更改。
3.3.1. 使用帮助
mx-dcmi fieldgroup -h
执行命令后，显示如下：
USAGE:
mx-dcmi fieldgroup [-hv] {-c <groupName>]|-d|-i|-l|--list-fields} [-f
<fieldsId>][-g <[0,63]>] [--host <IP:PORT>]
Where:
--host <IP:PORT>
The target host to connect.
-g <[0,63]>, --fieldgroup <[0,63]>
The field group to query on the remote host.
-f <fieldsId>, --fields <fieldsId>
Comma-separated list of field ids to add to a field group when
Creating a new one
or Query target fields info when listing available fields
One of:
-c <groupName>, --create <groupName>
Create a field group on the remote host.
-i, --info
Get a field group info on the remote host.
-d, --delete
Delete a field group on the remote host.
-l, --list
List all field group.
--list-fields
List all available field.
MetaX Data Center Management Interface
3.3.2. 创建指标组
以下命令创建指标组create_fieldgroup，并添加指标 1， 2， 3， 4， 25。
mx-dcmi命令：
mx-dcmi fieldgroup --host [IP]:[PORT] -c create_fieldgroup -f 1-4,25
操作成功，显示如下：
create field group "create_fieldgroup" with a group ID of 1 successfully
RESTful API：
curl -i -X POST http://[IP]:[PORT]/api/v1/fieldgroups/create_fieldgroup?fields=1-4,25
操作成功，显示如下：
HTTP/1.1 200 0K Content-type: application/json Content-Length: 13 {"groupid":1}
3.3.3. 删除指标组
mx-dcmi命令：
mx-dcmi fieldgroup --host [IP]:[PORT] -d -g 1
操作成功，显示如下：
delete field group 1 successfully
RESTful API：
curl -i -X DELETE http://[IP]:[PORT]/api/v1/fieldgroups/1
操作成功，显示如下：
HTTP/1.1 200 0K Content-Length: 0
3.3.4. 查看指标组信息
mx-dcmi命令：
mx-dcmi fieldgroup --host [IP]:[PORT] -i -g 1
操作成功，显示如下：
============= MetaX Data Center Management Interface Log ============= Timestamp : Wed Mar 6 15:00:00 2024 +----------------------------------------------------------------+ | FIELD GROUP | +--------------------+-------------------------------------------+ | Field Group ID | 1 | | Field Group Name | create_fieldgroup | | Field ID(s) | 1, 2, 3, 4, 25 | +--------------------+-------------------------------------------+
RESTful API：
curl -i -X GET http://[IP]:[PORT]/api/v1/fieldgroups/1
操作成功，显示如下：
HTTP/1.1 200 0K Content-type: application/json Content-Length: 62 {"groupid":1,"name":"create_fieldgroup","fields":{1,2,3,4,25}}
3.3.5. 查看指标组列表
mx-dcmi命令：
mx-dcmi fieldgroup --host [IP]:[PORT] -l
操作成功，显示如下：
============= MetaX Data Center Management Interface Log ============= Timestamp : Wed Mar 6 15:00:00 2024 +----------------------------------------------------------------+ | FIELD GROUP | | 2 field groups found | +--------------------+-------------------------------------------+ | Field Group ID | 0 | | Field Group Name | DEFAULT_FIELD_GROUP | | Field ID(s) | 11, 13, 23, 24, 25, 31, 32, 33 | +--------------------+-------------------------------------------+ | Field Group ID | 1 | | Field Group Name | create_fieldgroup | | Field ID(s) | 1, 2, 3, 4, 25 | +--------------------+-------------------------------------------+
RESTful API：
curl -i -X GET http://[IP]:[PORT]/api/v1/fieldgroups
操作成功，显示如下：
HTTP/1.1 200 0K Content-type: application/json Content-Length: 150 {"fieldgroups":[{"groupid":0,"name":"DEFAULT_FIELD_GROUP","fields":[11,13,23,24,25,31,32,33]},{"groupid":1,"name":"create_fieldgroup","fields":[1,2,3,4,25]}]}
3.3.6. 查看所有可用指标
mx-dcmi命令：
mx-dcmi fieldgroup --host [IP]:[PORT] --list-fields
操作成功，显示如下：
============= MetaX Data Center Management Interface Log ============= Timestamp : Wed Mar 6 15:00:00 2024 +----+-----------------------+----+-----------------------+ | Id | Field Name | Id | Field Name | +----------------------------+----+-----------------------+ | 0 | UNKNOWN | 18 | CCX_CLOCK | | 1 | DRIVER_VERSION | 19 | GPU_TEMP | | 2 | VBIOS_VERSION | 20 | SOC_TEMP | | 3 | FW_VERSION | 21 | TEMP_LIMIT | | 4 | SML_VERSION | 22 | PMBUS_POWER | | 5 | PROCESS_NAME | 23 | BOARD_POWER | | 6 | DEV_COUNT | 24 | GPU_UTIL | | 7 | DEV_NAME down | 25 | MEM_UTIL | | 8 | DEV_SML_INDEX | 26 | VPUE_UTIL | | 9 | DEV_SERIAL | 27 | VPUD_UTIL | | 10 | DEV_BDFID | 28 | PCIE_GEN | | 11 | GPU_CLOCK | 29 | PCIE_WIDTH | | 12 | CSC_CLOCK | 30 | PCIE_MAX_GEN | | 13 | MC_CLOCK | 31 | PCIE_TX | | 14 | SOC_CLOCK | 32 | PCIE_RX | | 15 | DNOC_CLOCK | 33 | ECC_STATE | | 16 | VPUE_CLOCK | 34 | MAX_FIELDS | | 17 | VPUD_CLOCK | | | +----------------------------+----+-----------------------+
RESTful API：
curl -i -X GET http://[IP]:[PORT]/api/v1/fields
操作成功，显示如下：
HTTP/1.1 200 0K Content-type: application/json Content-Length: 1008 {"fields":[{"id":0,"name":"UNKNOWN"},{"id":1,"name":"DRIVER_VERSION"},{"id":2,"name":"VBIOS_VERSION"},{"id":3,"name":"FW_VERSION"},{"id":4,"name":"SML_VERSION"},{"id":5,"name":"PROCESS_NAME"},{"id":6,"name":"DEV_COUNT"},{"id":7,"name":"DEV_NAME"},{"id":8,"name":"DEV_SML_INDEX"},{"id":9,"name":"DEV_SERIAL"},{"id":10,"name":"DEV_BDFID"},{"id":11,"name":"GPU_CLOCK"},{"id":12,"name":"CSC_CLOCK"},{"id":13,"name":"MC_CLOCK"},{"id":14,"name":"SOC_CLOCK"},{"id":15,"name":"DNOC_CLOCK"},{"id":16,"name":"VPUE_CLOCK"},{"id":17,"name":"VPUD_CLOCK"},{"id":18,"name":"CCX_CLOCK"},{"id":19,"name":"GPU_TEMP"},{"id":20,"name":"SOC_TEMP"},{"id":21,"name":"TEMP_LIMIT"},{"id":22,"name":"PMBUS_POWER"},{"id":23,"name":"BOARD_POWER"},{"id":24,"name":"GPU_UTIL"},{"id":25,"name":"MEM_UTIL"},{"id":26,"name":"VPUE_UTIL"},{"id":27,"name":"VPUD_UTIL"},{"id":28,"name":"PCIE_GEN"},{"id":29,"name":"PCIE_WIDTH"},{"id":30,"name":"PCIE_MAX_GEN"},{"id":31,"name":"PCIE_TX"},{"id":32,"name":"PCIE_RX"},{"id":33,"name":"ECC_STATE"},{"id":34,"name":"MAX_FIELDS"}]}
3.4. 状态监控
用户可以实时监控设备数据。对于曦云C588，会分Die显示信息。
3.4.1. 使用帮助
mx-dcmi dmon -h
执行命令后，显示如下：
USAGE:
mx-dcmi dmon [-hv] [-g <[0, 63]>|-i <gpu-id>] [-e <fieldIds>|-f <[0,
63]>] [-c <count>] [-d <delay>] [--host <IP:PORT>]
Where:
--host <IP:PORT>
The target host to connect.
-c <count>, --count <count>
Integer representing how many times to loop before exiting, 0
represents forever.
-d <delay>, --delay <delay>
Integer(ms) representing how often to query results from DCMD and
print them.
Default: 1000ms, minimum: 1000ms.
Either of:
-i <gpu-id>, --gpu-id <gpu-id>
Gpu index, run mx-dcmi discovery --host ip:port -l to check list of
gpu ids.
-g <[0, 63]>, --group-id <[0, 63]>
The gpu group to query on the specified host.
Either of:
-e <fieldIds>, --field-id <fieldIds>
Field identifier to view/inject.
-f <[0, 63]>, --field-group-id <[0, 63]>
The field group to query on the specified host.
--, --ignore_rest
Ignores the rest of the labeled arguments following this flag.
-v, --version
Displays version information and exits.
-h, --help
Displays usage information and exits.
MetaX Data Center Management Interface
3.4.2. 开启设备监控
mx-dcmi命令：
mx-dcmi dmon --host [IP]:[PORT] -i 0 -e 11 -d 2000 -c 5
-e（指标）可替换为-f（指标组）。-d（可选参数）指定监控间隔，不指定时默认1s。-c（可选参数）指定监控次数，不指定时持续监控。
操作成功，显示如下：
gpu die GPU_CLOCK id id MHz 0 0 428 0 0 428 0 0 428 0 0 428 0 0 428
RESTful API：
curl -i -X GET http://[IP]:[PORT]/api/v1/stats?gpu=0\&fields=11\&delay=2000\&count=5
fields（指标）可替换为fieldgroup（指标组）。delay（可选参数）指定监控间隔，不指定时默认1s。count（可选参数）指定监控次数，不指定时持续监控。
操作成功，显示如下：
HTTP/1.1 200 OK Content-Type: text/event-stream {"stats":[{"gpuid":0,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]}]} {"stats":[{"gpuid":0,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]}]} {"stats":[{"gpuid":0,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]}]} {"stats":[{"gpuid":0,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]}]} {"stats":[{"gpuid":0,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]}]}
3.4.3. 开启设备组监控
mx-dcmi命令：
mx-dcmi dmon --host [IP]:[PORT] -g 0 -e 11 -d 2000 -c 5
-e（指标）可替换为-f（指标组）。-d（可选参数）指定监控间隔，不指定时默认1s。-c（可选参数）指定监控次数，不指定时持续监控。
操作成功，显示如下：
gpu die GPU_CLOCK id id MHz 0 0 428 1 0 428 0 0 428 1 0 428 0 0 428 1 0 428 0 0 428 1 0 428 0 0 428 1 0 428
RESTful API：
curl -i -X GET http://[IP]:[PORT]/api/v1/stats?gpugroup=0\&fields=11\&delay=2000\&count=5
fields（指标）可替换为fieldgroup（指标组）。delay（可选参数）指定监控间隔，不指定时默认1s。count（可选参数）指定监控次数，不指定时持续监控。
操作成功，显示如下：
HTTP/1.1 200 OK Content-Type: text/event-stream {"stats":[{"gpuid":0,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]},{"gpuid":1,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]}]} {"stats":[{"gpuid":0,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]},{"gpuid":1,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]}]} {"stats":[{"gpuid":0,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]},{"gpuid":1,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]}]} {"stats":[{"gpuid":0,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]},{"gpuid":1,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]}]} {"stats":[{"gpuid":0,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]},{"gpuid":1,"dieid":0,"gpustats":[{"fieldid":11,"fieldname":"GPU_CLOCK","fieldunit":"MHz","value":"428"}]}]}
3.4.4. 停止监控
执行ctrl+c停止或者通过 -c/--count 指定监控次数。
3.5. 任务进程数据收集
mx-dcmd支持在后台收集数据、分析数据。这样，用户可以方便地收集任务级别的数据。
后台收集数据流程如图 3.1 所示。
图 3.1 后台收集数据流程
3.5.1. 使用帮助
mx-dcmi stats -h
执行命令后，显示如下：
USAGE:
mx-dcmi stats [-hv] {-j <jobName>]|-l|-r <jobName>|-s <jobName>|-x <jobName>} [-g <[0,63]>] [-m <duration>] [-u <interval>] [--host <IP:PORT>]
Where:
--host <IP:PORT>
The target host to connect.
-g <[0,63]>, --fieldgroup <[0,63]>
The gpu group to query on the job.
-u <interval>, --interval <interval>
How often to update the job stats in ms, default: 2000.
-m <duration>, --duration <duration>
How long to run the job in s, default: run till stop.
One of:
-s <jobName>, --jstart <jobName>
Start recording job statistics.
-x <jobName>, --jstop <jobName>
Stop recording job statistics.
-r <jobName>, --jremove <jobName>
Remove job statistics.
-j <jobName>, --job <jobName>
Display job statistics.
-l, --list
List all jobs.
--, --ignore_rest
Ignores the rest of the labeled arguments following this flag.
-v, --version
Displays version information and exits.
-h, --help
Displays usage information and exits.
MetaX Data Center Management Interface
3.5.2. 启动后台收集任务
以下命令创建并启动test_job，收集group0的信息，更新间隔2000 ms，更新6次后停止。
其中，更新次数：11s/2000ms = 6。
mx-dcmi命令：
mx-dcmi stats --host [IP]:[PORT] -s test_job -g 0 -u 2000 -m 11
操作成功，显示如下：
Successfully started recording stats for test_job
RESTful API：
curl -i -X POST http://[IP]:[PORT]/api/v1/job/test_job?group=0\&interval=2000\&duration=11
操作成功，显示如下：
HTTP/1.1 200 0K Content-Length: 0
3.5.3. 显示所有后台收集任务
mx-dcmi命令：
mx-dcmi stats --host [IP]:[PORT] -l
操作成功，显示如下：
============= MetaX Data Center Management Interface Log ============= Timestamp : Wed Mar 6 15:00:00 2024 +----------------------------------------------------------------+ | Job List | +-------------+----------------+---------------------------------+ | Job Name | State | Gpus | +-------------+----------------+---------------------------------+ | test_job2 | running | 0, 1, 2, 3, 4, 5, 6, 7 | | test_job | stopped | 0, 1, 2, 3, 4, 5, 6, 7 | +-------------+----------------+---------------------------------+
RESTful API：
curl -i -X GET http://[IP]:[PORT]/api/v1/jobs
操作成功，显示如下：
HTTP/1.1 200 0K Content-Length: 143 {"jobs":[{"jobname":"test_job2","state":"running","gpus":[0,1,2,3,4,5,6,7]},{"jobname":"test_job","state":"stopped","gpus":[0,1,2,3,4,5,6,7]}]}
3.5.4. 停止后台收集任务
mx-dcmi命令：
mx-dcmi stats --host [IP]:[PORT] -x test_job
操作成功，显示如下：
Successfully stopped recording stats for test_job
RESTful API：
curl -i -X PUT http://[IP]:[PORT]/api/v1/job/test_job?status=stop
操作成功，显示如下：
HTTP/1.1 200 0K Content-Length: 0
3.5.5. 显示指定后台任务数据
mx-dcmi命令：
mx-dcmi stats --host [IP]:[PORT] -j test_job
操作成功，显示如下：
============= MetaX Data Center Management Interface Log ============= Timestamp : Wed Mar 6 15:00:00 2024 +-------------------------------------------------------------------+ | Summary | +-------------------------------+-----------------------------------+ | ----- Execution Stats ------- +-----------------------------------| | Start Time | Wed Mar 6 15:00:00 | | Update Time | Wed Mar 6 15:00:12 | | Total Execution Time (sec) | 12 | | No. of Processes Time | 0 | | ----- Power Usage (Watts) ---+-----------------------------------| | GPU0 | Avg: 58.7, Max: 59.3 Min: 58.1 | | GPU1 |-Avg: 60.7, Max: 61.1 Min: 60.5 | | GPU2 | Avg: 56.8, Max: 57.1 Min: 56.5 | | GPU3 | Avg: 55.2, Max: 55.5 Min: 55.0 | | GPU4 | Avg: 62.5, Max: 62.8 Min: 62.3 | | GPU5 | Avg: 53.4, Max: 53.6 Min: 53.1 | | GPU6 | Avg: 55.6, Max: 55.9 Min: 55.1 | | GPU7 | Avg: 57.0, Max: 57.1 Min: 57.0 | | --- Max Memory Utilization(%) +-----------------------------------| | GPU0 | 1.3 | | GPU1 | 1.3 | | GPU2 | 0.6 | | GPU3 | 0.8 | | GPU4 | 1.3 | | GPU5 | 4.4 | | GPU6 | 5.6 | | GPU7 | 20.1 | | ----- Event Stats -----------+-----------------------------------| | Single Bit ECC Errors | Not Specified | | Double Bit ECC Errors | Not Specified | | ----- Overall Health --------+-----------------------------------| | Overall Health | Healthy | +-------------------------------+-----------------------------------+
RESTful API：
curl -i -X GET http://[IP]:[PORT]/api/v1/job/test_job
操作成功，显示如下：
HTTP/1.1 200 0K Content-type: application/json Content-Length: 830 {"starttime":"Wed Mar 6 15:00:00","updatetime":"Wed Mar 6 15:00:12","executetime":12,"processnumber":0,"devicenumber":8,"gpustatistics":[{"gpuid":0,"maxmemoryused":936048,"avgpower":58864,"maxpower":59262,"minpower":58055},{"gpuid":1,"maxmemoryused":936048,"avgpower":58864,"maxpower":59262,"minpower":58055},{"gpuid":2,"maxmemoryused":936048,"avgpower":58864,"maxpower":59262,"minpower":58055},{"gpuid":3,"maxmemoryused":936048,"avgpower":58864,"maxpower":59262,"minpower":58055},{"gpuid":4,"maxmemoryused":936048,"avgpower":58864,"maxpower":59262,"minpower":58055},{"gpuid":5,"maxmemoryused":936048,"avgpower":58864,"maxpower":59262,"minpower":58055},{"gpuid":6,"maxmemoryused":936048,"avgpower":58864,"maxpower":59262,"minpower":58055},{"gpuid":7,"maxmemoryused":936048,"avgpower":57023,"maxpower":57104,"minpower":56960}]}
3.5.6. 删除后台收集任务
mx-dcmi命令：
mx-dcmi stats --host [IP]:[PORT] -r test_job
操作成功，显示如下：
Successfully removed job test_job
RESTful API：
curl -i -X DELETE http://[IP]:[PORT]/api/v1/job/test_job
操作成功，显示如下：
HTTP/1.1 200 0K Content-Length: 0
3.6. 设备健康状态监控
用户可以查看设备健康状态。
3.6.1. 使用帮助
mx-dcmi health -h
执行命令后，显示如下：
USAGE:
mx-dcmi health [-hv] [-c|-d|-e <type>|--clear] [-g <[0, 63]>] [--host
<IP:PORT>]
Where:
--host <IP:PORT>
The target host to connect.
-g <[0, 63]>, --group <[0, 63]>
Group id
Either of:
-c, --check
Check to see if any errors or warnings have occurred in the enabled
monitors.
-d, --disable
Disable all monitors.
-e <type>, --enable <type>
Enable specified monitor(s).
a - all monitors
l - log monitor
e - event monitor
Note: 'le' is valid for enabling log&event monitors
--clear
Clear errors and warnings have detected in the enabled monitors.
Note: driver exception won't be cleared.
--, --ignore_rest
Ignores the rest of the labeled arguments following this flag.
-v, --version
Displays version information and exits.
-h, --help
Displays usage information and exits.
MetaX Data Center Management Interface
3.6.2. 检查设备健康状态
以下命令检查设备组#1在启用的监控项中是否发生告警。
mx-dcmi命令：
mx-dcmi health --host [IP]:[PORT] -c -g 1
操作成功，显示如下：
============= MetaX Data Center Management Interface Log ============= Timestamp : Mon Mar 11 11:59:29 2024 +----------------+-----------------------------------------------+ | Overall Health | Healthy | +----------------+-----------------------------------------------+ | GPU ID: 0 | Healthy | +----------------+-----------------------------------------------+ | GPU ID: 1 | Healthy | +----------------+-----------------------------------------------+
RESTful API：
curl -i -X GET http://[IP]:[PORT]/api/v1/health/gpugroup/1
操作成功，显示如下：
HTTP/1.1 200 OK Content-type: application/json Content-Length: 254 {"grouphealthinfo":"Healthy","driverexception":[],"gpuhealthinfo":[{"gpuid":0,"dieid":0,"healthinfo":{"errorlog":[],"fatallog":[],"hwexception":[],"memoryexception":[]}},{"gpuid":1,"dieid":0,"healthinfo":{"errorlog":[],"fatallog":[],"hwexception":[],"memoryexception":[]}}]}
3.6.3. 启用监控项
以下命令启用Log和Event监控。
mx-dcmi命令：
mx-dcmi health --host [IP]:[PORT] -e le
操作成功，显示如下：
Successfully enable health monitor, type 3.
RESTful API：
curl -i -X POST http://[IP]:[PORT]/api/v1/health/3
操作成功，显示如下：
HTTP/1.1 200 OK Content-Length: 0
3.6.4. 禁用所有监控项
以下命令禁用所有监控项。
mx-dcmi命令：
mx-dcmi health --host [IP]:[PORT] -d
操作成功，显示如下：
Successfully disable health monitors.
RESTful API：
curl -i -X DELETE http://[IP]:[PORT]/api/v1/health
操作成功，显示如下：
HTTP/1.1 200 OK Content-Length: 0
3.6.5. 清除告警
以下命令清除设备组#1启用监控项中已经检测到的告警。
mx-dcmi命令：
mx-dcmi health --host [IP]:[PORT] --clear -g 1
操作成功，显示如下：
Successfully clear group 1 health monitors.
RESTful API：
curl -i -X DELETE http://[IP]:[PORT]/api/v1/health/gpugroup/1
操作成功，显示如下：
HTTP/1.1 200 OK Content-Length: 0
3.7. 设备自检
用户可以使用自检功能检查设备状况。自检前建议关闭虚拟化。
3.7.1. 使用帮助
mx-dcmi diag -h
执行命令后，显示如下：
USAGE:
mx-dcmi diag [-hjv] [-c <PATH>] [-g <[0, 63]>] [-r <[1|2|3|4|software|pcie|mxlk|ops|mem>] [--host <IP:PORT>]
Where:
--host <IP:PORT>
The target host to connect.
-g <[0, 63]>, --group <[0, 63]>
The group ID to query.
-c <PATH>, --configfile <PATH>
Path to the configuration file in json format.
-j, --json
Print detailed result in json format.
--generate-template
Generate diag config template file.
-r <1|2|3|4|software|pcie|mxlk|ops|mem>, --run <1|2|3|4|software|pcie|mxlk|ops|mem>
Run a diagnostic.
(Note: higher numbered tests include all beneath.)
1 - Quick (System Validation ~ seconds)
2 - Medium (Extended System Validation ~ 2 minutes)
3 - Long (System HW Diagnostics ~ 15 minutes)
4 - Extended (Longer-running System HW Diagnostics)
Specific module diagnostic to run by name
Module name: software, pcie, mxlk, ops, mem
-p <MXC500|MXC550|MXC588>, --product <MXC500|MXC550|MXC588>
Specify metax product name to generate diag config file.
Supported product: MXC500, MXC550, MXC588
-s, --short
Start the diagnostic and disconnect
get the status by -l, get the result by -f
Either of:
-l, --list
List the diagnostic status.
-f, --fetch
Get the diagnostic info
specify gpu group id by -g, default 0
--, --ignore_rest
Ignores the rest of the labeled arguments following this flag.
-v, --version
Displays version information and exits.
-h, --help
Displays usage information and exits.
MetaX Data Center Management Interface
3.7.2. 自检项目
3.7.2.1. 自检项目说明
项目类别 |
所属级别 |
所属类型 |
说明 |
|---|---|---|---|
MxSml check |
Level 1 |
Deployment |
检查libmxsml.so是否可用。 |
Maca check |
Level 1 |
Deployment |
检查MXMACA软件栈是否可用。 |
Permission Check |
Level 1 |
Deployment |
检查用户权限。 |
Compiler Check |
Level 1 |
Deployment |
检查编译器是否可用。 |
Nouveau Check |
Level 1 |
Deployment |
检查Nouveau驱动是否禁用。 |
Environment Variable Check |
Level 1 |
Deployment |
检查环境变量设置。 |
Power Mode Check |
Level 1 |
Deployment |
检查是否开启高功耗模式，可通过 |
PCIe |
Level 2 |
Integration |
检查PCIe speed（GT/s），lanes和最大带宽（MB/s）。 |
MetaXLink |
Level 2 |
Integration |
检查MetaXLink speed（GT/s），lanes和最大带宽（MB/s）。 |
OPS |
Level 2 |
Hardware |
精度为INT8、BF16、FP16、FP32_vector、FP32_matrix、TF32的算力指标测试。自检配置文件对应 |
Memory |
Level 2 |
Hardware |
HBM申请大内存测试，及HBM带宽测试。 |
Gpu Burn |
Level 3 |
Hardware |
压力测试，检查功耗，使用率。自检配置文件及自检结果对应 |
Pulse Test |
Level 4 |
Hardware |
功耗波动测试。 |
Memory Test |
Level 4 |
Hardware |
共有11种类型的Memory测试。 |
3.7.2.2. 自检项目诊断时间
自检级别 |
诊断时间（参考） |
|---|---|
Level 1 |
< 2 秒 |
Level 2 |
< 2 分钟 |
Level 3 |
< 30 分钟 |
Level 4 |
< 2 小时 |
3.7.3. 执行自检
3.7.3.1. 默认基准自检
用户可使用默认基准直接执行Level1~Level4的自检，当前仅支持 MXC500， MXC550 及 MXC588。模块自检目前仍需指定配置文件进行自检。
mx-dcmi命令：
mx-dcmi diag --host [IP]:[PORT] -r {1|2|3|4}
3.7.3.2. 用户自定义基准自检
执行以下命令可生成默认指标配置文件diag-config-MXC500.json。
mx-dcmi命令：
mx-dcmi diag --generate-template --host [IP]:[PORT] --product {MXC500|MXC550|MXC588}
其中 --product 为产品名称，目前支持 MXC500， MXC550 及 MXC588，若不填则默认生成 MXC500 配置文件。
当执行Level1自检时，无须指定配置文件。用户可根据实际期望进行调整，若希望跳过某个项目的检查，可直接将对应项目整段删除。
执行以下命令指定用户自定义的配置文件diag-config-MXC500-modified.json进行自检：
mx-dcmi命令：
mx-dcmi diag --host [IP]:[PORT] -r {2|3|4} -c diag-config-MXC500-modified.json
3.7.4. 自检示例
3.7.4.1. Level 1自检
mx-dcmi命令：
mx-dcmi diag --host [IP]:[PORT] -r 1
操作成功，显示如下：
============= MetaX Data Center Management Interface Log =============
Timestamp : Mon Mar 11 14:36:07 2024
+-----------------------------+--------------------------------------+
| Diagnostic | Result |
+-----------------------------+--------------------------------------+
| ------ Deployment ----------+--------------------------------------|
| MxSml Library | Pass |
| Maca Library | Pass |
| Permission Check | Pass |
| Compiler Check | Pass |
| Nouveau Check | Pass |
| Environment Variable Check | Pass |
| Power Mode Check | Normal |
+-----------------------------+--------------------------------------+
3.7.4.2. RESTful API方式自检
获取MetaXLink自检结果，其中 -d 的入参为期望的MetaXLink指标结果。MetaXLink测试属于Level 2检测，对于其他Level 2检测项不予检测，显示为 skip。
mx-dcmi命令：
curl -i -X POST -d '{"metaxlink": {"bw_uni_p2p": 92000,"bw_bi_p2p": 181000,"speed": 32,"width": 16}}' http://[IP]:[PORT]/api/v1/diag/mxlk
操作成功，显示如下：
HTTP/1.1 200 OK
Content-type: application/json
Content-Length: 1126
{
"software": {
"mxsml": "pass",
"maca": "pass",
"permission": "pass",
"compiler": "pass",
"nouveau": "pass",
"envvar": "pass",
"powermode": "normal"
},
"pcie": {
"result": "skip"
},
"metaxlink": {
"result": "pass",
"p2p_uni": [
{
"src": 0,
"dst": 1,
"bandwidth": 101677
},
{
"src": 1,
"dst": 0,
"bandwidth": 98684
}
],
"p2p_bi": [
{
"src": 0,
"dst": 1,
"bandwidth": 191145
}
],
"mxlkspeedwidth": [
{
"gpuid": 0,
"speed": 32.0,
"width": 16
},
{
"gpuid ": 1,
"speed": 32.0,
"width": 16
}
]
},
"perf": {
"result": "skip"
},
"memory": {
"memAllocResult": "skip",
"memBwResult": "skip"
}
}
3.7.4.3. 指定模块自检
用户使用自定义配置文件指定模块进行自检，以HBM为例。
mx-dcmi命令：
mx-dcmi diag --host [IP]:[PORT] -r mem -c mxdcm-diag.json
操作成功，显示如下：
============= MetaX Data Center Management Interface Log =============
Timestamp : Mon Mar 11 14:36:07 2024
+-----------------------------+--------------------------------------+
| Diagnostic | Result |
+-----------------------------+--------------------------------------+
| ------ Deployment ----------+--------------------------------------|
| MxSml Library | Pass |
| Maca Library | Pass |
| Permission Check | Pass |
| Compiler Check | Pass |
| Nouveau Check | Pass |
| Environment Variable Check | Pass |
| Power Mode Check | Normal |
+-----------------------------+--------------------------------------+
| ------ Hardware ------------+--------------------------------------|
| Memory MAX | Pass |
| Memory Bandwidth | Pass |
+-----------------------------+--------------------------------------+
3.7.4.4. 查询自检执行状态和结果
备注
该功能仅支持 Level1~Level4自检，暂不支持模块自检。
用户使用 --short, -L, --fetch 组合进行自检状态及结果查询。
执行Level3自检。
mx-dcmi命令：
mx-dcmi diag --host [IP]:[PORT] -r 3 --short
操作成功，显示如下：
Diagnostic request has started successfully Use mx-dcmi diag -l/-f to get diagnostic status/result.
查询Level3自检执行状态。
mx-dcmi命令：
mx-dcmi diag --host [IP]:[PORT] -l
操作成功，显示如下：
============= MetaX Data Center Management Interface Log ============= Timestamp : Tue Jul 8 14:36:07 2025 +-------------------------+------------------------------------+ | Group Id | Result | +-------------------------+------------------------------------+ | 0 | Pass | +-------------------------+------------------------------------+
当状态从
Running变为Pass或Fail时，可查询Level3自检结果。mx-dcmi命令：
mx-dcmi diag --host [IP]:[PORT] -f
操作成功，显示如下：
============= MetaX Data Center Management Interface Log ============= Timestamp : Tue Jul 8 14:36:07 2025 +-----------------------------+--------------------------------------+ | Diagnostic | Result | +-----------------------------+--------------------------------------+ | ------ Deployment ----------+--------------------------------------| | MxSml Library | Pass | | Maca Library | Pass | | Permission Check | Pass | | Compiler Check | Pass | | Nouveau Check | Pass | | Environment Variable Check | Pass | | Power Mode Check | Normal | +-----------------------------+--------------------------------------+ | ------ Integration ---------+--------------------------------------| | PCIe | Pass | | MetaXLink | Pass | +-----------------------------+--------------------------------------+ | ------ Hardware ------------+--------------------------------------| | Ops | Pass | | Memory MAX | Pass | | Memory Bandwidth | Pass | | Gpu Burn | Pass | | Pulse Test | Skip | | Memory Test | Skip | +-----------------------------+--------------------------------------+
3.7.4.5. 指定设备进行自检
仅对指定设备进行自检，需新建设备组（参见 3.2.2 创建设备组），将设备放入组中（参见 3.2.3 添加设备到设备组），再进行自检。
执行以下命令指定设备组（Group ID:1）进行Level2自检。
mx-dcmi命令：
mx-dcmi diag --host [IP]:[PORT] -r 2 -g 1
操作成功，显示如下：
============= MetaX Data Center Management Interface Log =============
Timestamp : Tue Jul 8 14:36:07 2025
+-----------------------------+--------------------------------------+
| Diagnostic | Result |
+-----------------------------+--------------------------------------+
| ------ Deployment ----------+--------------------------------------|
| MxSml Library | Pass |
| Maca Library | Pass |
| Permission Check | Pass |
| Compiler Check | Pass |
| Nouveau Check | Pass |
| Environment Variable Check | Pass |
| Power Mode Check | Normal |
+-----------------------------+--------------------------------------+
| ------ Integration ---------+--------------------------------------|
| PCIe | Pass |
| MetaXLink | Pass |
+-----------------------------+--------------------------------------+
| ------ Hardware ------------+--------------------------------------|
| Ops | Pass |
| Memory MAX | Pass |
| Memory Bandwidth | Pass |
+-----------------------------+--------------------------------------+
3.7.4.6. 显示json格式的自检结果
以下命令指定Level 1自检，以json格式显示结果。
mx-dcmi命令：
mx-dcmi diag --host [IP]:[PORT] -r 1 -j
操作成功，显示如下：
============= MetaX Data Center Management Interface Log =============
Timestamp : Mon Mar 11 14:36:26 2024
{
"software": {
"mxsml": "pass",
"maca": "pass",
"permission": "pass",
"compiler": "pass",
"nouveau": "pass",
"envvar": "pass",
"powermode": "normal"
}
}
3.8. 拓扑查询
用户可以使用拓扑查询功能查看GPU设备的拓扑连接。
3.8.1. 使用帮助
mx-dcmi topo -h
执行命令后，显示如下：
USAGE:
mx-dcmi topo [-hv] {-g |--gpuid } [--host ]
Where:
--host
The target host to connect.
One of:
--gpuid
The gpu ID to query.
-g , --group
The group ID to query.
--, --ignore_rest
Ignores the rest of the labeled arguments following this flag.
-v, --version
Displays version information and exits.
-h, --help
Displays usage information and exits.
MetaX Data Center Management Interface
3.8.2. 查看设备拓扑信息
mx-dcmi命令：
mx-dcmi topo --host [IP]:[PORT] {-g |--gpuid }
操作成功，显示如下：
============= MetaX Data Center Management Interface Log =============
Timestamp : Sat Apr 19 22:04:47 2025
+-------------------+-----------------------------------------------+
| GPU ID: 0 | Topology Information |
+-------------------+-----------------------------------------------+
| CPU Core Affinity | 0-39,80-119 |
+-------------------+-----------------------------------------------+
| To GPU 1 | Connected via a metaxlink |
+-------------------+-----------------------------------------------+
| To GPU 2 | Connected via a metaxlink |
+-------------------+-----------------------------------------------+
| To GPU 3 | Connected via a metaxlink |
+-------------------+-----------------------------------------------+
| To GPU 4 | Connected via a CPU-level link (the same numa)|
+-------------------+-----------------------------------------------+
| To GPU 5 | Connected via a CPU-level link (the same numa)|
+-------------------+-----------------------------------------------+
| To GPU 6 | Connected via a CPU-level link (the same numa)|
+-------------------+-----------------------------------------------+
| To GPU 7 | Connected via a CPU-level link (the same numa)|
+-------------------+-----------------------------------------------+
End of Log
3.9. 网卡诊断

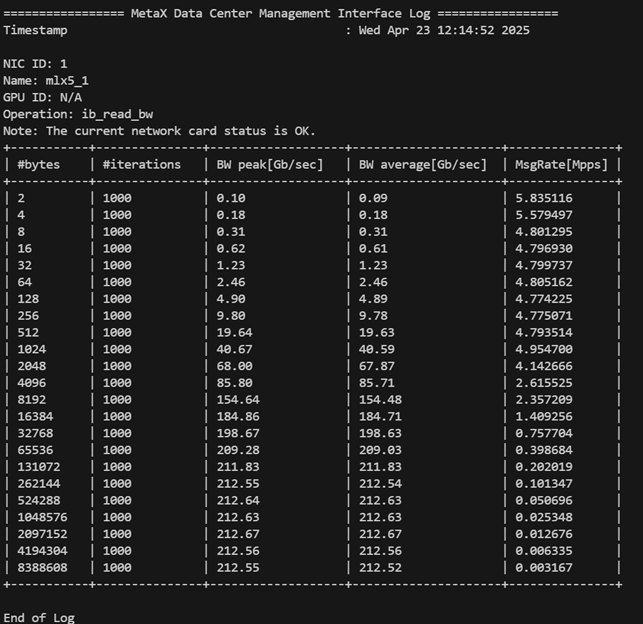

用户可以使用自检功能检查单机网卡状况，也可对网卡进行单机和跨机的性能测试与压力测试。
3.9.1. 使用帮助
mx-dcmi nic -h
执行命令后，显示如下：
USAGE:
mx-dcmi nic [-hjlv] [--generate-template] [--show-qos-info][-c <PATH>]
[-r <1|2|3>] [--client-gpu-list <clientgpulist>]
[--client-nic-list <clientniclist>] [--gpu-id <gpuid>]
[--host <IP:PORT>] [--nic-id <nicid>] [--operation <[0,
2]>] [--server-gpu-id <servergpuid>] [--server-nic-id
<servernicid>] [--server-num <servernum>] [--socket-address
<socketaddress>] [--test-mode <[0, 3]>] [--type <[0, 1]>]
Where:

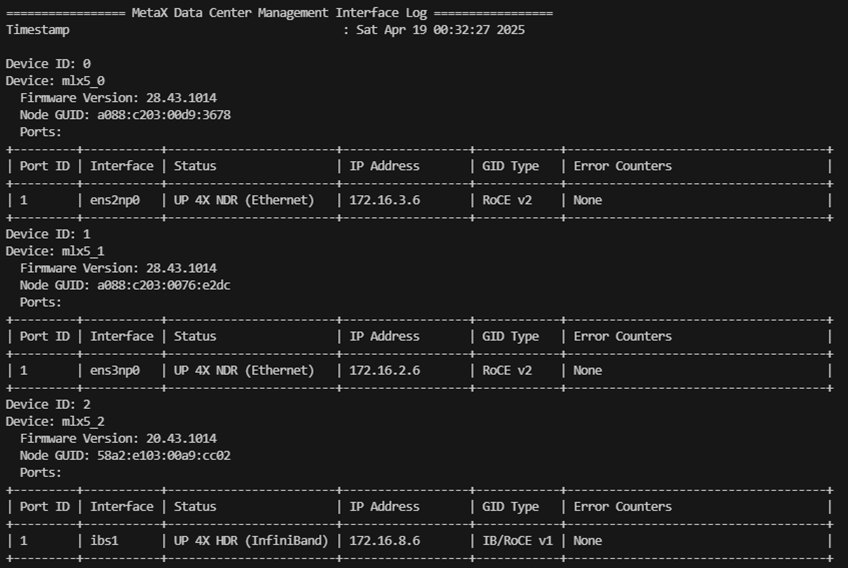

-l, --list
List all Nic info on the host.
--host <IP:PORT>
The target host to connect.
--test-mode <[0, 3]>
Query diagnostic test-mode:
0 - do diagnostic on the target Nic
1 - do burn diagnostic on the target Nic
2 - start the target Nic as burn diagnostic server
3 - start the target Nic as burn diagnostic client
--nic-id <nicid>
Target Nic Id
--gpu-id <gpuid>
Target Gpu Id
--server-nic-id <servernicid>
Server Nic Id
--server-num <servernum>
Server Count
--server-gpu-id <servergpuid>
Server Gpu Id
--client-nic-list <clientniclist>
Client Nic List
--client-gpu-list <clientgpulist>
Client Gpu List
--socket-address <socketaddress>
Socket Address
--operation <[0, 2]>
Query diagnostic operation:
0 - Send (ib_send_*)
1 - Read (ib_read_*)
2 - Write (ib_write_*)
--type <[0, 1]>
Query diagnostic type:
0 - bw (ib_*_bw)
1 - lat (ib_*_lat)
-c <PATH>, --configfile <PATH>
Path to the configuration file in json format.
-j, --json
Print detailed result in json format.
--generate-template
Generate Nic diag config template file.
--show-qos-info
Show Qos Info. Need use with --list
-r <1|2|3>, --run <1|2|3>
Run a Nic diagnostic.
(Note: higher numbered tests include all beneath.)
1 - Quick (Nic basic diagnostic ~ seconds)
2 - Medium (Nic diagnostic include ib write perftest ~ 15 minutes)
3 - Long (Nic diagnostic include ib write burntest ~ 30 minutes)
--, --ignore_rest
Ignores the rest of the labeled arguments following this flag.
-v, --version
Displays version information and exits.
-h, --help
Displays usage information and exits.
MetaX Data Center Management Interface
3.9.2. 查询网卡信息
mx-dcmi命令：
mx-dcmi nic --host [IP]:[PORT] -l [–-nic-id <nicid>]
如需显示指定网卡信息，使用 –-nic-id <nicid> 指定。
操作成功，显示如下：
图 3.2 查询网卡信息
3.9.3. 自检项目
3.9.3.1. 自检项目说明
项目类别 |
所属级别 |
说明 |
|---|---|---|
Driver Version Check |
Level 1 |
检测网卡驱动版本 |
Firmware Version Check |
Level 1 |
检测网卡固件版本 |
Kernel Syslog Check |
Level 1 |
检查网卡在内核中的日志 |
Device Name Check |
Level 1 |
检测网卡的名称 |
Port State Check |
Level 1 |
监测网卡端口状态（UP/DOWN）IP地址 |
Error counters Check |
Level 1 |
检测网卡的错误计数器 |
Interface Name Check |
Level 1 |
检测网卡接口名称 |
Perf test byself (write) for all nic |
Level 2 |
对本服务器所有网卡进行性能测试（RDMA写入） |
Perf burn test (write) for all nic |
Level 3 |
对本服务器所有网卡进行压力测试（RDMA写入） |
高级别的检测包含所有低级别的检测内容。若低级别的测试结果中有失败，则不会执行高级别的测试，显示为 Skip。
例如，执行Level 3的测试时，Level 2的测试结果为失败，则默认不执行Level 3的测试内容，Level 3的测试结果为 Skip。
3.9.3.2. 基准配置文件
执行Level 1自检前，可用以下命令生成环境对应的配置文件nic-diag-config.json。生成的配置文件中网卡的信息仅包含与设备相连接的网卡，其他网卡默认不在其中。
参见 3.9.2 查询网卡信息 获取对应网卡的 ip_address 信息。
若相关检查项目内容为空，则会跳过该项检查；若检查结果等同于配置文件中的内容，则该项检查通过，否则失败。
mx-dcmi命令：
mx-dcmi nic --generate-template --host [IP]:[PORT]
以下 nic-diag-config.json 仅为示例，用户可根据实际需要进行调整。
{
"Driver Version": "xxx",
"Firmware Version": "xxx",
"Nic Status": {
"port state": "UP 4X NDR (InfiniBand)",
"device names": [
"mlx5_0",
"mlx5_1"
],
"interface names": [
"ens2np0",
"enp3np0"
],
"ip address": ["172.16.2.1", "172.16.3.1"]
},
"Qos Configuration": {
"priority trust state":"dscp",
"cmaRoceTos":"",
"trafficClass":"160",
"pfc priority enabled":"0,0,0,0,0,1,0,0",
"pfc priority buffer":"0,0,0,0,0,1,0,0",
"ecn Np priority enabled":"1,1,1,1,1,1,1,1",
"ecn Np cnp_802_prio":"6",
"ecn Np cnp_dscp":"48",
"ecn Rp priority enabled":"1,1,1,1,1,1,1,1"
}
}
3.9.4. 自检示例
3.9.4.1. Level 1自检
mx-dcmi命令：
mx-dcmi nic --host [IP]:[PORT] -r 1 -c <config_file>
操作成功，显示如下：
============= MetaX Data Center Management Interface Log =============
Timestamp : Thu Apr 24 09:22:29 2025
+------------------------------+------------------------------------+
| Diagnostic | Result |
+------------------------------+------------------------------------+
| ------ NIC Self Check -------+------------------------------------|
| Driver Version Check | Pass |
| Firmware Version Check | Pass |
| Kernel Syslog Check | Pass |
| Device Names Check | Pass |
| Port State Check | Pass |
| Error Counters Check | Pass |
| Interface Names Check | Pass |
| Ip Address Check | Pass |
+------------------------------+------------------------------------+
End of Log
3.9.4.2. 显示json格式的自检结果
以下命令指定Level 2自检，以json格式显示结果。
mx-dcmi命令：
mx-dcmi nic --host [IP]:[PORT] -c nic-diag-config.json -r 2 -j
操作成功，显示如下：
{"Driver version":{"Result":"pass"},"Firmware version":{"Result":"pass"},"Kernel syslog":{"Result":"pass"},"Device names":{"Result":"pass"},"Port state":{"Result":"pass"},"Interface names":{"Result":"pass"},"Ip address":{"Result":"pass"},"Error counters":{"Result":"pass"},"Perftest":{"Result":"skip"},"Priority trust state":{"Result":"pass"},"Cnp 802p Prio":{"Result":"pass"},"Cnp Dscp":{"Result":"pass"},"Cma Rock Tos":{"Result":"skip"},"Traffic Class":{"Result":"pass"},"PFC Configuration enabled":{"Result":"pass"},"PFC Configuration buffer":{"Result":"pass"},"ECN Np Configuration enabled":{"Result":"pass"},"ECN Rp Configuration enabled":{"Result":"pass"}}
3.9.5. 单机RDMA性能测试
3.9.5.1. 基本命令格式
用户可根据自己的需求自由组合测试，且可同GPUDirect结合使用，以评估网络和GPU的性能。
备注
当测试结果不理想时，会给出具体原因分析及建议。
mx-dcmi命令：
mx-dcmi nic --host [IP]:[PORT] --test-mode 0 --nic-id <nicid> [--operation <0|1|2>] [--type <0|1>] [--gpu-id <gpuid>]
参数 |
说明 |
|---|---|
|
被测服务器IP地址及mxdcmd服务端口 |
|
指定测试模式， |
|
网卡ID |
|
指定RDMA测试类型。 |
|
指定测试类型。 |
|
指定目标设备ID进行GPU Direct测试 |
3.9.5.2. 示例1：读取数据带宽测试
mx-dcmi命令：
mx-dcmi nic --host [IP]:[PORT] --test-mode 0 --nic-id 1 --operation 1 --type 0
操作成功，显示如下：
图 3.3 读取数据带宽测试
3.9.5.3. 示例2：写入数据带宽测试（RESTful API）
mx-dcmi命令：
curl -i -X POST http://[IP]:[PORT]/api/v1/nic/ibs/ibtest?testmode=r\&server=3\&operation=write\&type=bw
操作成功，显示如下：
HTTP/1.1 200 OK
Content-type: application/json
Content-type: application/json
Content-Length: 3372
{"results":[{"deviceId":3,"name":"mlx5_2","operation":"ib_write_bw","type":0,"result":[
{"Bytes":2,"Iterations":5000,"BW Peak":0.06857100129127502,"BW Average":0.0682080015540123,"Msg Rate":4.262992858886719,"analysisResult":0},
{"Bytes":4,"Iterations":5000,"BW Peak":0.12999999523162842,"BW Average":0.12999999523162842,"Msg Rate":3.9534409046173096,"analysisResult":0},
{"Bytes":8,"Iterations":5000,"BW Peak":0.23999999463558197,"BW Average":0.23999999463558197,"Msg Rate":3.7158620357513428,"analysisResult":0},
{"Bytes":16,"Iterations":5000,"BW Peak":0.46000000834465027,"BW Average":0.46000000834465027,"Msg Rate":3.588594913482666,"analysisResult":0},
{"Bytes":32,"Iterations":5000,"BW Peak":0.9100000262260437,"BW Average":0.9100000262260437,"Msg Rate":3.5382909774780273,"analysisResult":0},
{"Bytes":64,"Iterations":5000,"BW Peak":1.6100000143051147,"BW Average":1.6100000143051147,"Msg Rate":3.1451549530029297,"analysisResult":0},
{"Bytes":128,"Iterations":5000,"BW Peak":3.4000000953674316,"BW Average":3.4000000953674316,"Msg Rate":3.3210930824279785,"analysisResult":0},
{"Bytes":256,"Iterations":5000,"BW Peak":6.440000057220459,"BW Average":6.440000057220459,"Msg Rate":3.1433870792388916,"analysisResult":0},
{"Bytes":512,"Iterations":5000,"BW Peak":12.899999618530273,"BW Average":12.850000381469727,"Msg Rate":3.1373159885406494,"analysisResult":0},
{"Bytes":1024,"Iterations":5000,"BW Peak":26.030000686645508,"BW Average":26.020000457763672,"Msg Rate":3.1757090091705322,"analysisResult":0},
{"Bytes":2048,"Iterations":5000,"BW Peak":63.47999954223633,"BW Average":63.380001068115234,"Msg Rate":3.868633985519409,"analysisResult":0},
{"Bytes":4096,"Iterations":5000,"BW Peak":118.8499984741211,"BW Average":118.29000091552734,"Msg Rate":3.6099469661712646,"analysisResult":0},
{"Bytes":8192,"Iterations":5000,"BW Peak":192.2100067138672,"BW Average":191.22999572753906,"Msg Rate":2.917980909347534,"analysisResult":0},
{"Bytes":16384,"Iterations":5000,"BW Peak":207.5800018310547,"BW Average":207.5,"Msg Rate":1.5830650329589844,"analysisResult":0},
{"Bytes":32768,"Iterations":5000,"BW Peak":210.83999633789063,"BW Average":210.1999969482422,"Msg Rate":0.8018640279769897,"analysisResult":0},
{"Bytes":65536,"Iterations":5000,"BW Peak":211.94000244140625,"BW Average":211.94000244140625,"Msg Rate":0.40423500537872314,"analysisResult":0},
{"Bytes":131072,"Iterations":5000,"BW Peak":212.13999938964844,"BW Average":212.1199951171875,"Msg Rate":0.20229299366474152,"analysisResult":0},
{"Bytes":262144,"Iterations":5000,"BW Peak":212.22999572753906,"BW Average":212.22999572753906,"Msg Rate":0.10119900107383728,"analysisResult":0},
{"Bytes":524288,"Iterations":5000,"BW Peak":212.17999267578125,"BW Average":212.13999938964844,"Msg Rate":0.050579000264406204,"analysisResult":0},
{"Bytes":1048576,"Iterations":5000,"BW Peak":212.22000122070313,"BW Average":212.1199951171875,"Msg Rate":0.025287000462412834,"analysisResult":0},
{"Bytes":2097152,"Iterations":5000,"BW Peak":212.17999267578125,"BW Average":212.0500030517578,"Msg Rate":0.012639000080525875,"analysisResult":0},
{"Bytes":4194304,"Iterations":5000,"BW Peak":212.17999267578125,"BW Average":212.0500030517578,"Msg Rate":0.006320000160485506,"analysisResult":0},
{"Bytes":8388608,"Iterations":5000,"BW Peak":212.1199951171875,"BW Average":212.0800018310547,"Msg Rate":0.003160000080242753,"analysisResult":0}]}]}
3.9.5.4. 示例3：读取数据延时测试（GPUDirect）
mx-dcmi命令：
mx-dcmi nic --host [IP]:[PORT] --test-mode 0 --nic-id 1 --operation 0 --type 1 --gpu-id 0
操作成功，显示如下：
图 3.4 读取数据延时测试
3.9.6. 单机RDMA压力测试
3.9.6.1. 基本命令格式
用户可根据自己的需求自由组合测试单机和跨机环境下的RDMA 压力测试，包括GPUDirect支持的场景。
备注
当测试结果不理想时，会给出具体原因分析及建议。
mx-dcmi命令：
mx-dcmi nic --host [IP]:[PORT] –-test-mode 1 --server-nic-id <servernicid> --client-nic-list <clientniclist> [--operation <0|1|2>] [--type <0|1>] [--server-gpu-id <servergpuid>] [--client-gpu-list <clientgpulist>]
参数 |
说明 |
|---|---|
|
被测服务器IP地址及mxdcmd服务端口 |
|
指定测试模式， |
|
指定测试的服务端网卡ID，注意需要指定与GPU相连的网卡ID，若为管理口及存储口，则不能测试 |
|
指定测试的客户端网卡ID，注意需要指定与GPU相连的网卡ID，若为管理口及存储口，则不能测试。当有多个网卡需要测试时，需用 “,” 分隔，如：1,2,3 |
|
指定测试的服务端设备ID进行GPUDirect测试 |
|
指定测试的客户端设备ID进行GPUDirect测试，个数需与 |
|
指定RDMA测试类型。 |
|
指定测试类型。 |
3.9.6.2. 示例1：读取数据带宽压力测试
mx-dcmi nic --host [IP]:[PORT] --test-mode 1 --server-nic-id 0 --client-nic-list 1,3 --operation 1

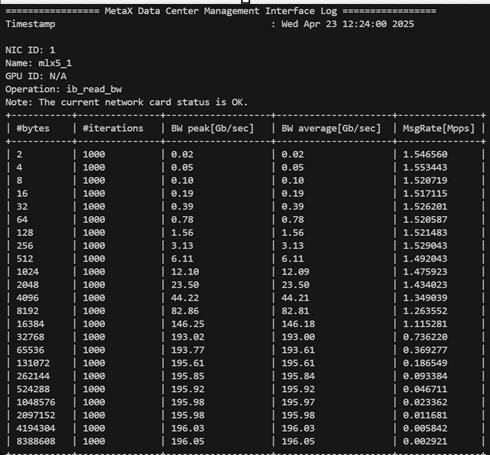

操作成功，网卡1测试结果显示如下：
图 3.5 读取数据带宽压力测试网卡1结果

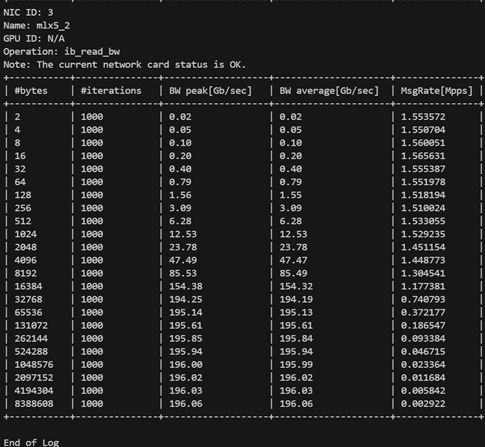

网卡3测试结果显示如下：
图 3.6 读取数据带宽压力测试网卡3结果
3.9.6.3. 示例2：读取数据带宽压力测试（GPUDirect）
mx-dcmi nic --host [IP]:[PORT] --test-mode 1 --server-nic-id 0 --client-nic-list 1,3 --server-gpu-id 0 --client-gpu-list 1,2 --operation 1

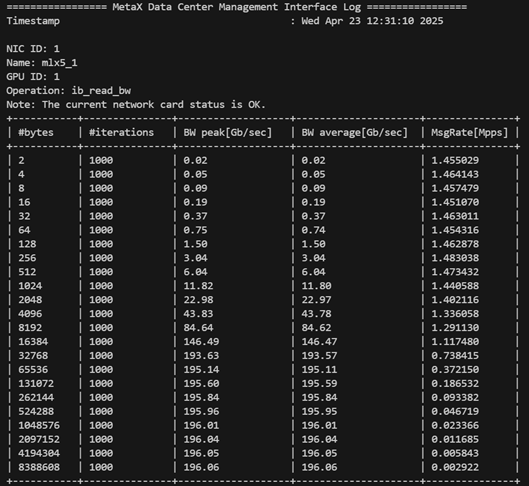

操作成功，网卡1测试结果显示如下：
图 3.7 GPUDirect读取数据带宽压力测试网卡1结果

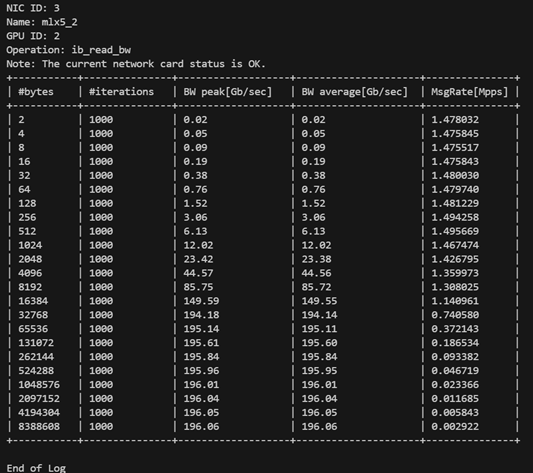

网卡3测试结果显示如下：
图 3.8 GPUDirect读取数据带宽压力测试网卡3结果
3.9.7. 跨机RDMA压力测试
3.9.7.1. 基本命令格式
用户可根据自己的需求自由组合测试单机和跨机环境下的RDMA 压力测试，包括GPUDirect支持的场景。
备注
当测试结果不理想时，会给出具体原因分析及建议。
服务端：
mx-dcmi nic --host [IP1]:[PORT1] –-test-mode 2 --server-nic-id <servernicid> --server-num <servernum> [--operation <0|1|2>] [--type <0|1>] [--server-gpu-id <servergpuid>]
参数 |
说明 |
|---|---|
|
被测服务器IP地址及mxdcmd服务端口 |
|
指定测试模式， |
|
指定测试的服务端网卡ID，注意需要指定与GPU相连的网卡ID，若为管理口及存储口，则不能测试 |
|
指定测试的服务端端口个数，个数需与对应的list中ID个数相同，当大于1时，仅返回第一个端口。该端口在测试结束后会释放，如要继续测试，则需重启动Server及Client |
|
指定测试的服务端设备ID进行GPUDirect测试 |
|
指定RDMA测试类型。 |
|
指定测试类型。 |
客户端：
mx-dcmi nic --host [IP2]:[PORT2] –-test-mode 3 --client-nic-list <clientniclist> --socket-address [IP1]:[PORT3] [--operation <0|1|2>] [--type <0|1>] [--client-gpu-list <clientgpulist>]
参数 |
说明 |
|---|---|
|
被测服务器IP地址及mxdcmd服务端口 |
|
指定测试模式， |
|
指定测试的客户端网卡ID，注意需要指定与GPU相连的网卡ID，若为管理口及存储口，则不能测试。当有多个网卡需要测试时，需用 “,” 分隔，如：1,2,3 |
|
指定测试要连接的服务端IP和端口号，指定时为Server端返回的IP及端口，若IP为内部IP地址，则需改为Server所在的HOST IP |
|
指定测试的客户端设备ID进行GPUDirect测，个数需与 |
|
指定RDMA测试类型。0为发送（send）操作， |
|
指定测试类型。 |
3.9.7.2. 示例1：跨机写入数据带宽压力测试
服务端：
mx-dcmi nic --host [IP1]:[PORT1] --test-mode 2 --server-nic-id 6 --server-num 2
命令返回socket address 用于客户端使用。
操作成功，显示如下：
============= MetaX Data Center Management Interface Log =============
Timestamp : Wed Apr 23 12:50:54 2025
Socket Address: 172.17.26.36:23515
客户端：
mx-dcmi nic --host [IP2]:[PORT2] --test-mode 3 --client-nic-list 3，4 --socket-address [IP1]:23515

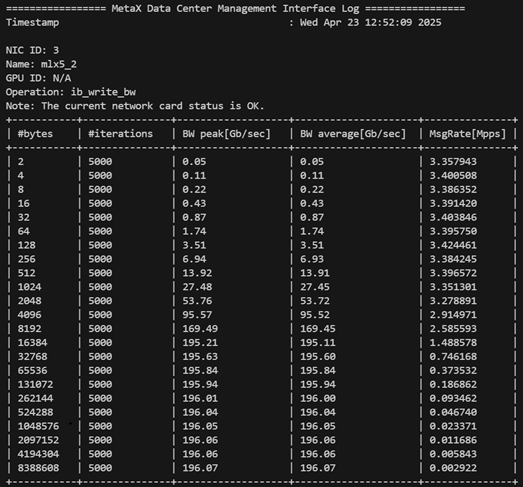

操作成功，网卡3测试结果显示如下：
图 3.9 跨机写入数据带宽压力测试网卡3结果

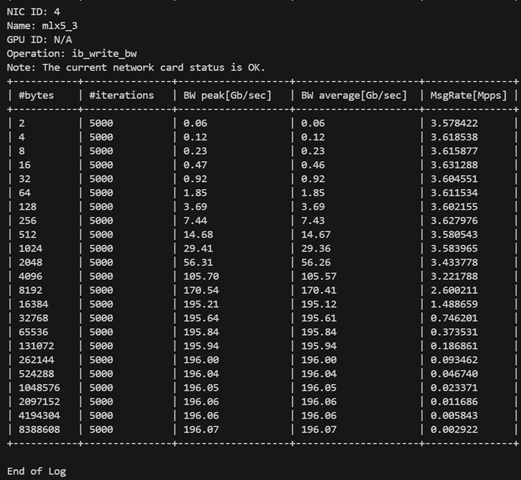

网卡4测试结果显示如下：
图 3.10 跨机写入数据带宽压力测试网卡4结果
3.9.7.3. 示例2：跨机写入数据带宽压力测试（GPUDirect）
服务端：
mx-dcmi nic --host [IP1]:[PORT1] --test-mode 2 --server-nic-id 4 --server-gpu-id 3 --server-num 2
命令返回socket address 用于客户端使用。
操作成功，显示如下：
============= MetaX Data Center Management Interface Log =============
Timestamp : Wed Apr 23 12:39:27 2025
Socket Address: 172.17.22.36:21515
客户端：
mx-dcmi nic --host [IP2]:[PORT2] --test-mode 3 --client-gpu-list 1,3 --client-nic-list 0,3 --socket-address [IP1]:21515

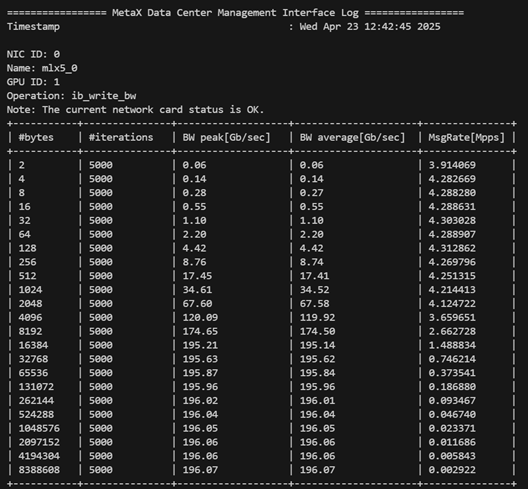

操作成功，网卡1测试结果显示如下：
图 3.11 GPUDirect跨机写入数据带宽压力测试网卡1结果
网卡3测试结果显示如下：
图 3.12 GPUDirect跨机写入数据带宽压力测试网卡3结果
3.10. MCCL诊断
用户可使用 mccl 子命令对网卡执行MCCL测试。主要功能为生成测试配置模板、执行MCCL压力测试、查询测试结果以及测试任务管理。
前提条件：
集群环境中，被测服务器已部署多个GPU设备及Infiniiband网卡，且配置一致。
mx-dcmd 可部署于参与MCCL测试的主机，或集群中与测试主机配置一致的其他主机；无需在集群的每台被测服务器上部署mx-dcmd。
mx-dcmi 正常运行在管理节点、不参加测试的服务器、参加测试的服务器均可。
服务器之间已设置免密登录。
3.10.1. 使用帮助
mx-dcmi mccl -h
执行命令后，显示如下：
USAGE:
mx-dcmi mccl [-hv] {-g |-j |-l|-r |-s |
-x } [-c ] [--host ]
Where:
--host
The target host to connect.
-c , --configfile
Path to the configuration file in json format. Must be used in
conjunction with -s/--start.
One of:
-s , --start
Start Mccl stress job with the configuration file.
-x , --stop
Stop Mccl stress job.
-r , --remove
Remove Mccl stress job.
-j , --job
Display Mccl stress result.
-g , --generate-template
Generate Mccl diag config template file with wanted ip list.
-l, --list
List all Mccl stress job info on the host.
--, --ignore_rest
Ignores the rest of the labeled arguments following this flag.
-v, --version
Displays version information and exits.
-h, --help
Displays usage information and exits.
MetaX Data Center Management Interface
3.10.2. 配置文件
执行MCCL前需要用户提供MCCL测试所需参数配置。
执行以下命令可生成默认指标配置文件 mccl-diag-config.json。
mx-dcmi命令：
mx-dcmi mccl --host [IP]:[PORT] –g "<PATH>"
[IP]:[PORT]为收集MCCL日志的服务器，已启动mx-dcmd且正常运行。<PATH>指定被测主机列表全路径，如"/home/user/ip.txt"，当为""时，将根据[IP]:[PORT]信息自动生成一份配置文件。
以下 mccl-diag-config.json 仅为示例，用户可根据实际需要进行调整。
{
"perf_type": "all_gather_perf",
"mgmt_interface_name": "bond0",
"mgmt_ip_mask": "10.200.146.192/26",
"mgmt_ip_address": "10.200.146.235,10.200.146.226",
"node": "3",
"nic_dev": "mlx5_4, mlx5_1, mlx5_6, mlx5_3, mlx5_2, mlx5_0, mlx5_7, mlx5_5",
"duration": "43200"
}
项目类别 |
说明 |
|---|---|
|
测试类型，目前支持 |
|
服务器管理口名称 |
|
服务器管理口掩码，当跨地址段时，需手动修改该参数 |
|
被测服务器地址列表，可直接手动修改配置文件，生成配置文件传入的IP列表会全部显示在这里 |
|
每组参与测试的服务器个数，若需跑单机，可填 |
|
与GPU设备相连接的网卡列表，可根据实际情况手动修改 |
|
单位：秒，测试持续时间，默认为43200秒（24小时） |
3.10.3. MCCL测试基本命令
本章节以测试任务 mccl_test 为例。
3.10.3.1. 启动MCCL测试
mx-dcmi命令：
mx-dcmi mccl --host [IP]:[PORT] --start mccl_test --configfile <config_file>
--host为收集MCCL日志的服务器，已启动mx-dcmd且正常运行。--start传入任务名称（jobname）。--configfile传入可用于测试的配置文件。
备注
最多可创建64个任务。
操作成功，显示如下：
Successfully started Mccl diag for mccl_test
3.10.3.2. 查询测试任务状态
待MCCL测试开始3分钟后可查询测试任务状态。
mx-dcmi命令：
mx-dcmi mccl --host [IP]:[PORT] -l
操作成功，显示如下：
============= MetaX Data Center Management Interface Log =============
Timestamp : Mon Apr 21 16:52:49 2025
Mccl stress job list
+--------------------+--------------------------+
| Job Name | State |
+-----------------------------------------------+
| mccl_test | running |
+--------------------+--------------------------+
3.10.3.3. 查看测试结果
mx-dcmi命令：
mx-dcmi mccl --host [IP]:[PORT] -j mccl_test
操作成功，显示如下：
============= MetaX Data Center Management Interface Log =============
Timestamp : Tue Apr 22 16:43:13 2025
{
"results": [{
"node_list": "10.200.146.226:8",
"perf_type": " all_gather_perf",
"nic_dev": " mlx5_7, mlx5_3, mlx5_2, mlx5_0, mlx5_4, mlx5_6, mlx5_1, mlx5_5",
"iter": "2",
"start_time": "2025-04-22 16:40:07",
"end_time": "2025-04-22 16:41:23",
"min_alg_bandwidth": "296.04",
"max_alg_bandwidth": "296.04"
}]
}
MCCL测试结果会存放在 mxdcmd-log 文件夹下，命名为 mccl_stress_log_x_<pid>.log。
pid为测试任务的进程ID。x为MCCL的测试组数，若有多组测试，将生成同一个PID下的多组测试日志。
若查询到测试任务状态很快为 stopped 时，表明已经出错，可通过结果查看具体出错原因，如下所示：
============= MetaX Data Center Management Interface Log =============
Timestamp : Wed Apr 23 13:14:18 2025
{
"results": [{
"node_list": "10.200.146.235:8,10.200.146.226:8",
"perf_type": " all_gather_perf",
"nic_dev": " mlx5_4, mlx5_6, mlx5_3, mlx5_2, mlx5_0, mlx5_7, mlx5_5",
"iter": "1",
"error": " : Test NCCL failure all_gather.cu:47 'internal error / Proxy Call to rank 15 failed (Connect)'"
}]
}
3.10.3.4. 终止测试任务
mx-dcmi命令：
mx-dcmi mccl --host [IP]:[PORT] -x mccl_test
操作成功，显示如下：
Successfully stopped Mccl diag for mccl_test
再次查询mccl_test状态，显示 stopped：
============= MetaX Data Center Management Interface Log =============
Timestamp : Wed Apr 23 13:13:38 2025
Mccl stress job list
+----------------------+---------------+
| Job Name | State |
+----------------------+---------------+
| mccl_test | stopped |
+----------------------+---------------+
End of Log
3.10.3.5. 删除测试任务
mx-dcmi命令：
mx-dcmi mccl --host [IP]:[PORT] -r mccl_test
操作成功，显示如下：
Successfully remove Mccl diag for mccl_test
再次查询任务状态：
============= MetaX Data Center Management Interface Log =============
Timestamp : Wed Apr 23 13:20:51 2025
Mccl stress job list
+-------------------------------------+
| There is no job |
+-------------------------------------+
End of Log
